Haasbelts Flat Top 1060 Magnetflex Plastic Chainbelts

Get reliable Haasbelts Flat Top 1060 Magnetflex Plastic Chainbelts direct from the factory. High-quality, durable and made to last. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
FTM1060
Chain Colour
Green
Chain Material
POM
Export Markets
Global
Plate Width
83.8mm
Standard Length
3.048 M=10 Feet(120 Links)
Condition
New
Application
Cartons/Shrink Packs/Glass/Pet Bottle
Dedicated Chain Type
Plastic Chainbelt
Leaf Chains Type
Magnetic Flexing Chain
Transport Package
by Cartons
Specification
ISO9001
Trademark
Tuoxin
Origin
Jiangsu Nantong
HS Code
3926901000
Production Capacity
3000 Meters/Month

Product Description

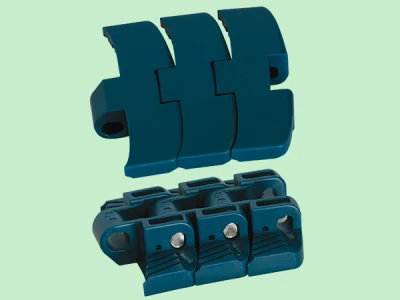

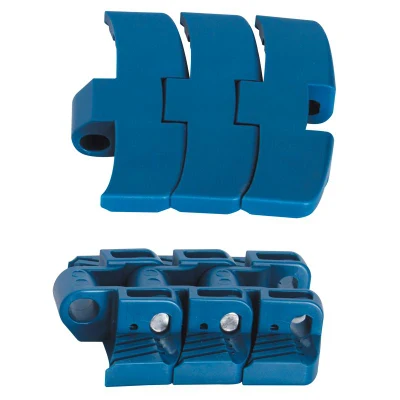

Flat Top 1060 Magnetflex Plastic Chainbelts


Specifications:

Magnetflex Plastic Chainbelt
1. Pin: Stainless Steel
2. Type: FTM1060
3. Packing: 1M=39 pcs

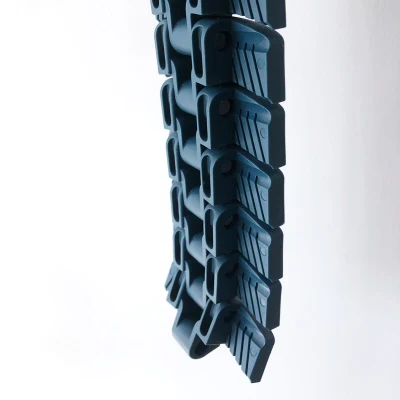

4. Backflex radius: 130mm
5. Standard Length: 3.048 M=10 feet(120 links)
Haasbelts Flat Top 1060 Magnetflex Plastic Chainbelts Haasbelts Flat Top 1060 Magnetflex Plastic Chainbelts
Haasbelts Flat Top 1060 Magnetflex Plastic Chainbelts Haasbelts Flat Top 1060 Magnetflex Plastic Chainbelts Haasbelts Flat Top 1060 Magnetflex Plastic Chainbelts Haasbelts Flat Top 1060 Magnetflex Plastic Chainbelts Haasbelts Flat Top 1060 Magnetflex Plastic Chainbelts Haasbelts Flat Top 1060 Magnetflex Plastic Chainbelts Haasbelts Flat Top 1060 Magnetflex Plastic Chainbelts Haasbelts Flat Top 1060 Magnetflex Plastic Chainbelts
Sideflex ChainBelt
Magnetic Chain
Plastic Chains
Conveyor Chains
Flat Top Chains
Table Top Chains

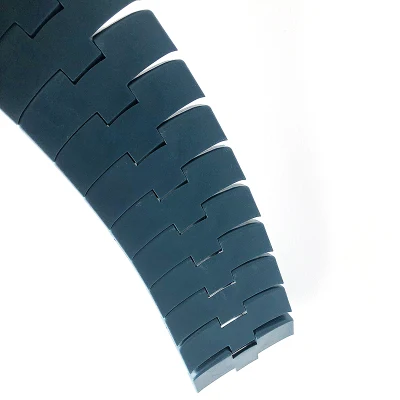

This chainbelt offers a new and unique solution for sideflexing applications in plants with modular conveyor chains. The chainbelt is best suitable for conveying glass and PET containers.

BENEFITS:
-high strength and heavy duty flight design.
-standardisation in conveyor design.
-optimum product stability

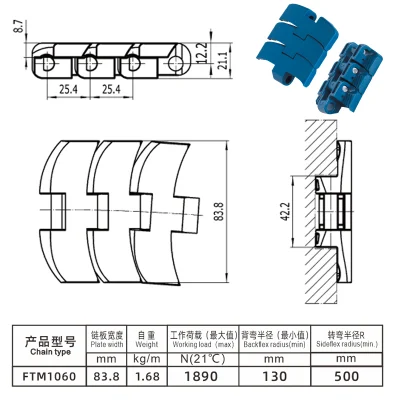

 Chain Type
 Plate Width   Weight   Sideflexing Radius(min) Working Load(max)     Backflexing Radius(min)
 mm     kg/m  mm   N(21º C)  mm
 FTM1060  83.8  1.68  500  1890  130
