Wafer Inspection Machine with Professional Metrology Tech Newton 1500

Looking for a reliable wafer inspection machine with professional metrology tech? Check out the Newton 1500 for precise and accurate results. Visit our factory today!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Application
  • Product Parameters
  • Packaging & Shipping
  • Certifications
  • Our Advantages
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
Newton 1500
CCD
1,300,000 Pixel Industrial Camera
Lens
Manual Zoom Lens(0.7X-4.5X)
Light
Top: LED Light
Resolution
1um
Software
Ins-C
Transport Package
Vacuum, Moistureproof in Wooden Case
Specification
2100*2480*1800mm
Trademark
Caidao
Origin
China
HS Code
9031809090
Production Capacity
1000PCS/Year

Product Description

Product Description

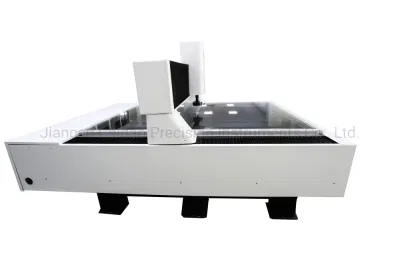

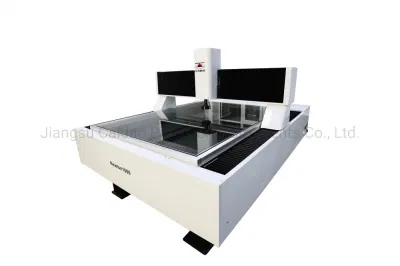

Newton automatic vision measuring machine with medium range is driven by grinding screw rod, which has the characteristics of fast measuring speed, high measuring accuracy. Measurement range can be customized.

  1. Optional: manual or automatic zoom lens
  2. 5-ring&8-section led programmable light meets various measurement requirements
  3. Equipped with spectrum, laser and touch probe to measure 3D
  4. Granite frame proves machine stable and reliable.
  5. Mobile gantry structure with servo control technology ensures the machine run smoothly and reliably.
Wafer Inspection Machine with Professional Metrology Tech Newton 1500
Wafer Inspection Machine with Professional Metrology Tech Newton 1500
Wafer Inspection Machine with Professional Metrology Tech Newton 1500

Application

Newton automatic vision measuring machine is widely used in machinery, electronics, mold, injection molding, metal,rubber, low voltage electrical apparatus, magnetic materials, precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical equipment, clocks and watches, cutting tool and so on.

Wafer Inspection Machine with Professional Metrology Tech Newton 1500
Wafer Inspection Machine with Professional Metrology Tech Newton 1500



Product Parameters
Model Newton 800 Newton 1000 Newton 1500
Range(mm) 600*800*200 800*1000*200 1200*1500*200
Dimension(mm) 1440*1680*1800 1640*1880*1800 2100*2480*1800
Weight 2200kg 3100kg 4500kg
CCD 1,300,000 pixel industrial camera
Lens Manual/automatic zoom lens(0.7X-4.5X)
Light Top:  5-ring and 8-section LED light,
bottom: LED point light
Resolution Optional:  0.1μm/0.5μm/1μm
X/Y liner accuracy (3+L/250)μm  unit of L:  mm
Optional Laser, touch probe, confocal sensor
Software INS-C
Environment Temperature:  (20±5)ºC, humidity:  30%-80%
Packaging & Shipping
Wafer Inspection Machine with Professional Metrology Tech Newton 1500
Wafer Inspection Machine with Professional Metrology Tech Newton 1500



Certifications
Wafer Inspection Machine with Professional Metrology Tech Newton 1500
Wafer Inspection Machine with Professional Metrology Tech Newton 1500
Wafer Inspection Machine with Professional Metrology Tech Newton 1500



Our Advantages
  1. Caidao has a large number of world-class and Chinese first-line high-quality customer groups.
  2. Caidao is the only company with all-round layout of "precision micro optics" in China.
  3. Up to now, the company has applied for more than 40 patents and software works, and has successively obtained the qualifications of Jiangsu private technology enterprises, Jiangsu sci.&tec.small and medium enterprises, Kunshan sci.&tec.R & D center, Shandong University industry-university-research cooperation tech. center, Shanghai sci.&tec. graduate workstation, National high-tech enterprises and so on.
  4. "The sixth generation AMOLED flexible screen laser repair detection microscope" won the pre selection of the first set of equipment in Jiangsu Province. "10.5G line super travel measurement microscope" won the entrepreneur Angel award of Kunshan sci.&tec. Bureau. Due to "High resolution and high efficiency automatic macro micro detection equipment" project, Caidao is the only shortlisted enterprise in Jiangsu which is holded by  the short board equipment of the Ministry of industry and information technology.
  5. The core members of the team have more than 10 years of industrial experience in optical instrument and pan semiconductor industry.
  6. Caidao has hardware module R & D + software platform module R & D + terminal application comprehensive technical solution ability.(1)One of few domestic equipment companies which have the ability to design and manufacture a complete set of precision mechanisms including linear single or double drive, air floating drive, screw and belt drive.(2)One of few domestic companies that can manufacture high-precision with super large range mechanical structures of more than 130 inches.(3)Compared with the competitors, one of few companies which have own intellectual property control system and self-developed chip algorithm, and which can cover most of the main products.(4)With comprehensive optical application capabilities, we can simultaneously master machine vision application of camera lens optical combination, micro optics with microscope application such as gold image, infrared, fluorescence, and laser application of measurement and repair.
Wafer Inspection Machine with Professional Metrology Tech Newton 1500
Wafer Inspection Machine with Professional Metrology Tech Newton 1500



After Sales Service

The customer can send the engineer to our company to complete the inspection of the goods, as well as the installation and training lessons, but the Visa fee, round tickets, accommodation, eating, and the allowance will be on customer's side.
Or we will send the engineers to install and test the machines and have training lessons abroad, but the Visa fee, round tickets, accommodation, eating, and the allowance of 80USD per day per person will be on customer's side.

FAQ

Q1: What are you main products?
A1: Jiangsu Caidao Precision Instrument Co., Ltd. was at country-level HDA of Kunshan, and Caidao has become a national high-tech enterprise in high-end optical image measurement and various inspection instruments, CMM, and AOI automatic testing equipment research and development, production and sales services.
The products include: manual and automatic vision measuring machine, precision measuring microscope, customized and AOI instruments.
Any question about this machine or our factory , please contact us ,sincerely serve for you .

Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A : We offer you high quality machines with one year guarantee . We will give you free spare parts in one year.

If during the warranty period, the quality or specification of the goods is found to be inconsistent with the contractual requirements, or if the goods are found to be defective (including potential defects or the use of unqualified materials, etc.), the buyer has the right to use the inspection documents issued by the statutory authority. During the warranty period of the goods, the buyer shall make a claim against the seller.

Q2: Where is your company located ?How can i visit there?
A2:Our factory is located in Kunshan, Suzhou City, Jiangsu Province, China.

You can fly to Shanghai Pudong International Airport and we are warmly welcome to visit us.(Provide pick-up service.)

Q3: How can l get some samples?
A3: We have no sample. We will send you more pictures and video about this machine,and welcome to visit our factory to see the machine running in the factory.


Q4: How about the quality of your products?
A4: Our company guarantees that the products provided are brand new, unused, with the latest design and suitable materials, and comply with the quality, specification and performance of the contract in all respects.

Q5: Do you provide customized service?
A5: We can design the machines according your requirements (our brand, OEM, ODM),at the same time we will give you our professional suggestion, as you know, we have been in this industry for many years.


Q6: Do you have any famous customers?
A6: We have many famous customers such as SUMSUNG, HKC, BOE, PANDA, SHARP and so on.

Q7: How can I install my machine when it arrives?
A7: The customer can send the engineer to our company to complete the inspection of the goods, as well as the installation and training lessons, but the Visa fee, round tickets, accommodation, eating, and the allowance will be on customer's side.

Or we will send the engineers to install and test the machines and have training lessons abroad, but the Visa fee, round tickets, accommodation, eating, and the allowance of 80USD per day per person will be on customer's side.

Q8:What's the delivery time?
A8: 15-60 days after the T/T deposit.
