Gradient Color Filter/Gradient Diffuser/Optical Filter/Progressive Lenses

OptiGradient Progressive Lenses - Factory direct gradient color and diffuser filters. Shop our optical filters for superior vision and style."
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
RAY-LH221#
Certification
RoHS, ISO, CE
Customized
Customized
Substrate
Schott Borofloat 33 or Equivalent
Surface Quality
40-20 Scratch-Dig or Custom Manufacturing
Surface Flatness
Lambda/10 at 632.8nm with Power Removed
Coating Type
Dielectric Coating
Wavelength Range
488-694 Nm/700-950nm
Transport Package
Cartons or Wood Case
Specification
12.7mm/25.4mm/50.8mm or custom manufacturing
Trademark
Raytek
Origin
China
HS Code
9002909090
Production Capacity
100000PCS Per Year

Product Description

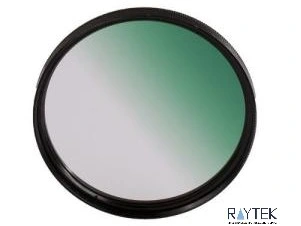

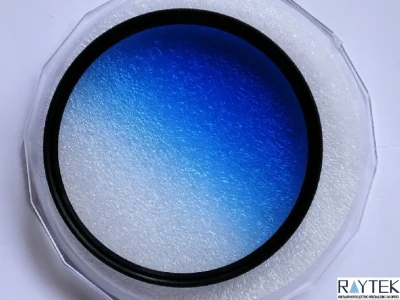

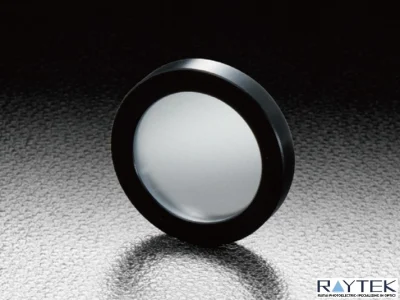

Product Description: Gradient filter, also known as [GND filter], is one of the most important filters in photographic art creation. It can be divided into gradient color filter and gradient diffuser. In terms of gradient form, it can be divided into soft gradient and hard gradient. " That is, the transition range is larger, and vice versa, that is, the transition range is smaller, both of which need to be selected according to the characteristics of the creation. The full name of the gradient filter is the gradient neutral grayscale filter, and they have almost no effect on the color cast or white balance of the image. The gear design is mainly based on the difference in brightness between an overly bright sky and a darker ground, making exposure easier and photo brightness looking more natural. Filters are made of high-quality optical glass without compromising color reproduction.

Gradient mirrors can be divided into screw-in and plug-in designs. Since the gradient lens with the plug-in design is easier to change the angle, and the proportion of the gradient can be changed by shifting up and down, it is very popular with photography enthusiasts. In addition to the gradient filter, the plug-in design filter system also provides ND, star mirror and other averaging filters. The plug-in design gradient filter can be fixed in front of the lens with a bracket, and the bracket can be used with multiple filters at the same time.


Gradient Color Filter/Gradient Diffuser/Optical Filter/Progressive Lenses
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;

Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
